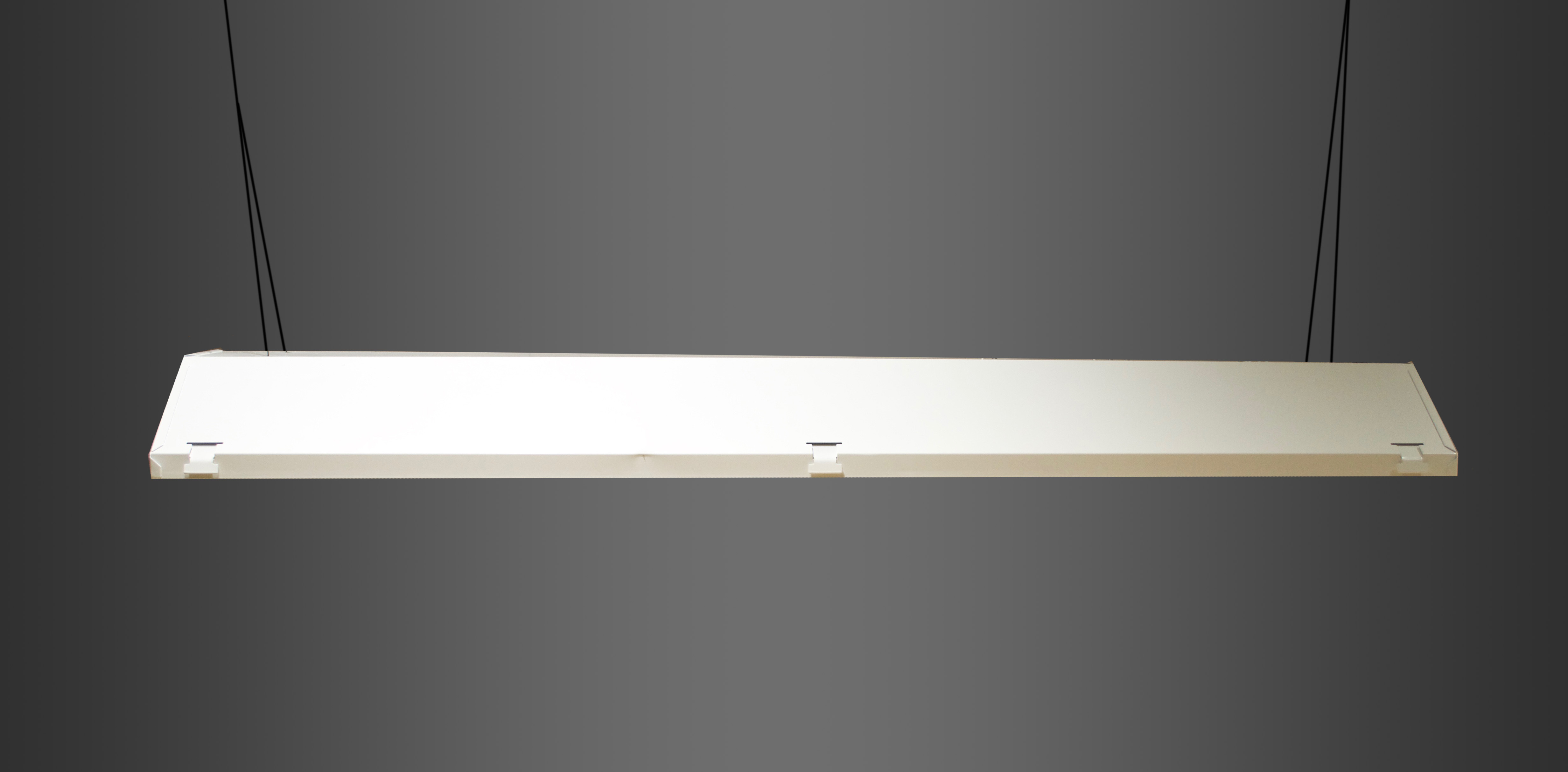

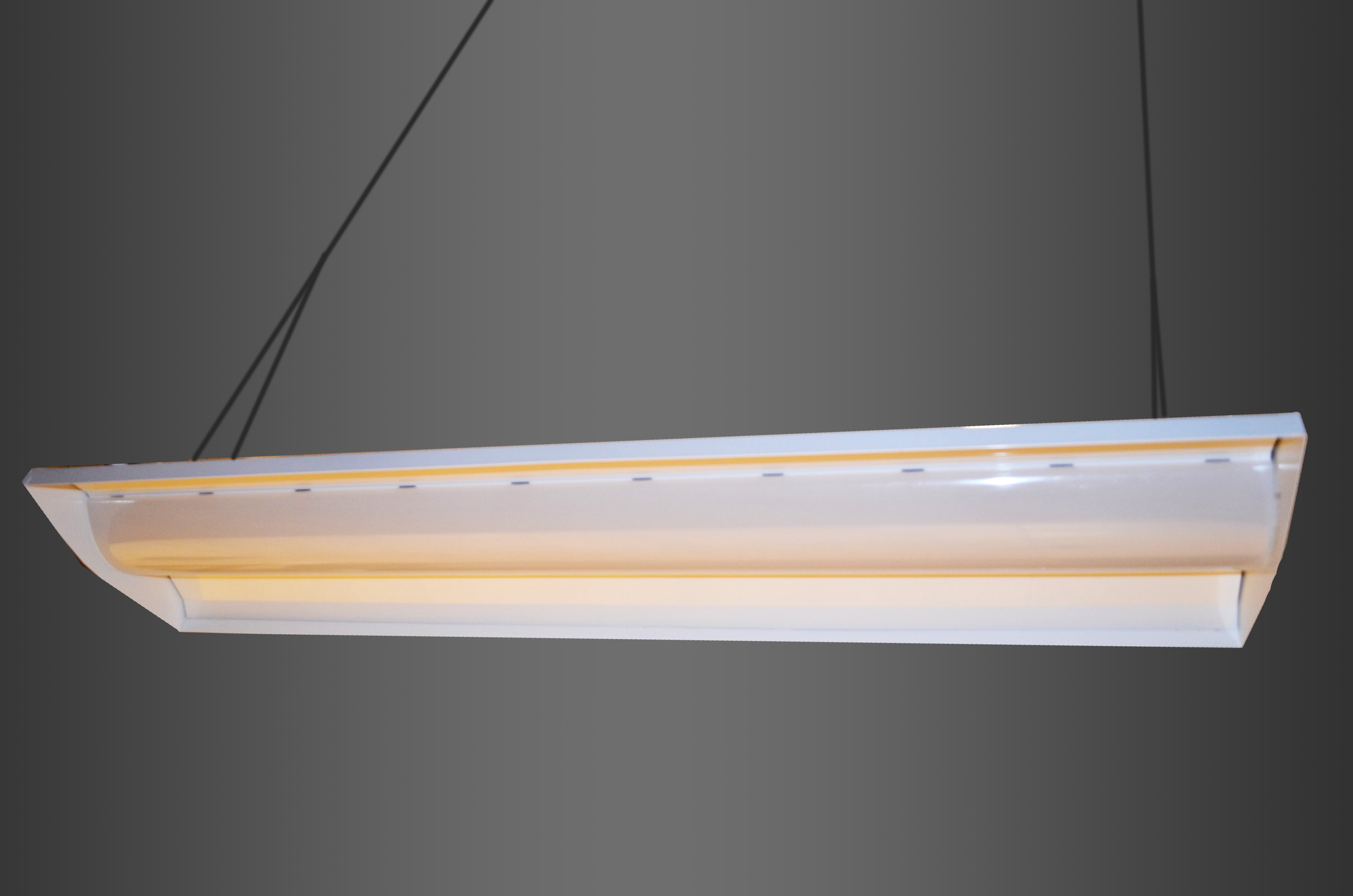

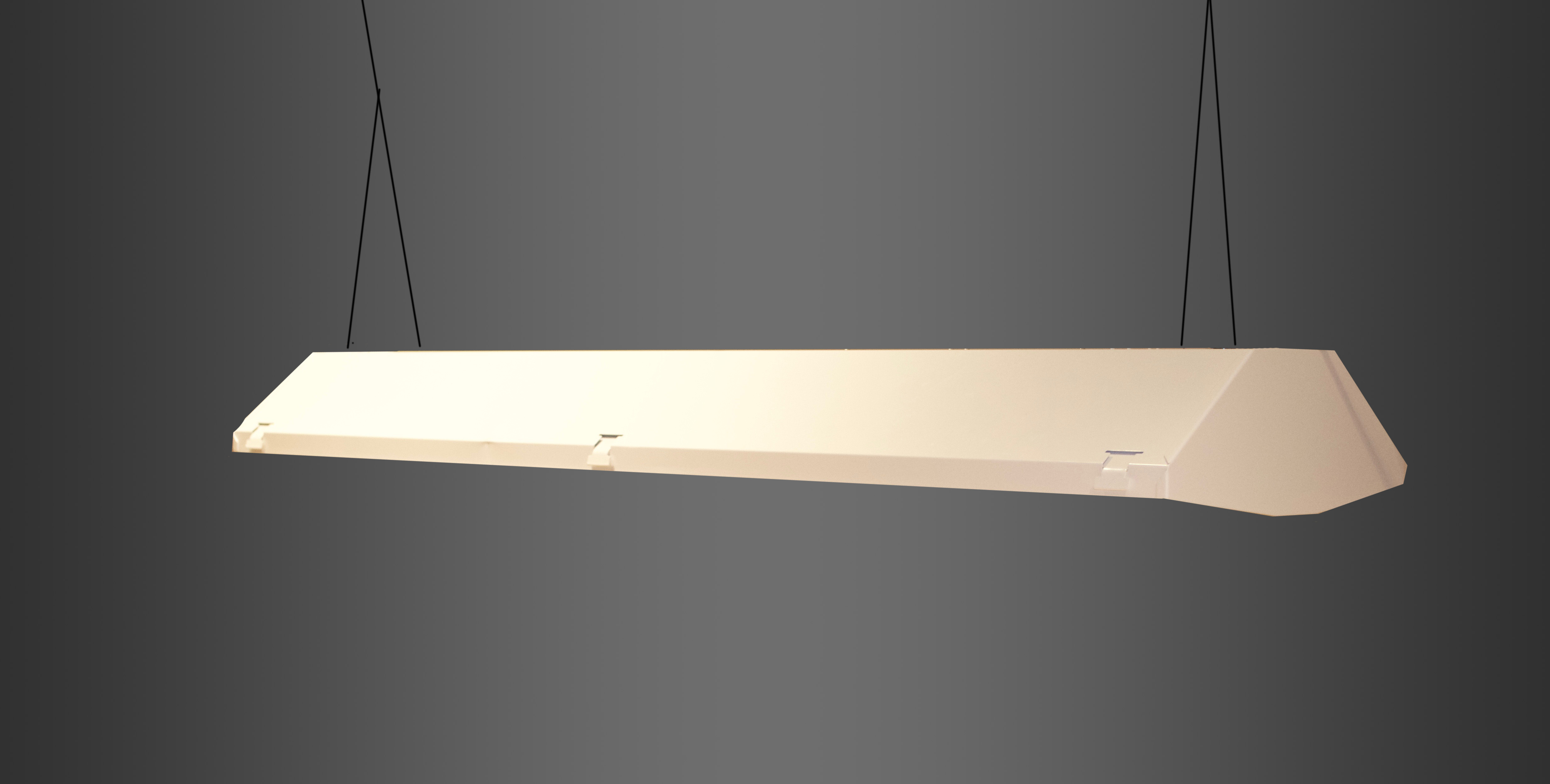

Linear High-Bay Luminaire
High Lumen output LED Linear High-Bay luminaire for high output fluorescent replacement or new construction Download Spec Sheet

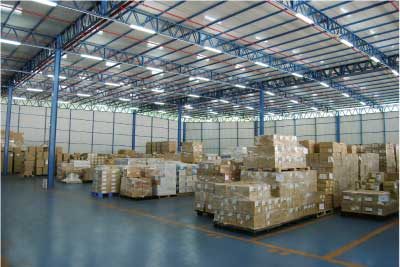

High lumen output linear LED high bay luminaire for HPS/MH lamp replacement. Ideal solution for large retail, warehouse, gymnasium, and industrial applications
ALL DOWNLOADS
IES FILES SPEC SHEETS PHOTOS
FEATURES
4′ Linear High-Bay LED Luminaire

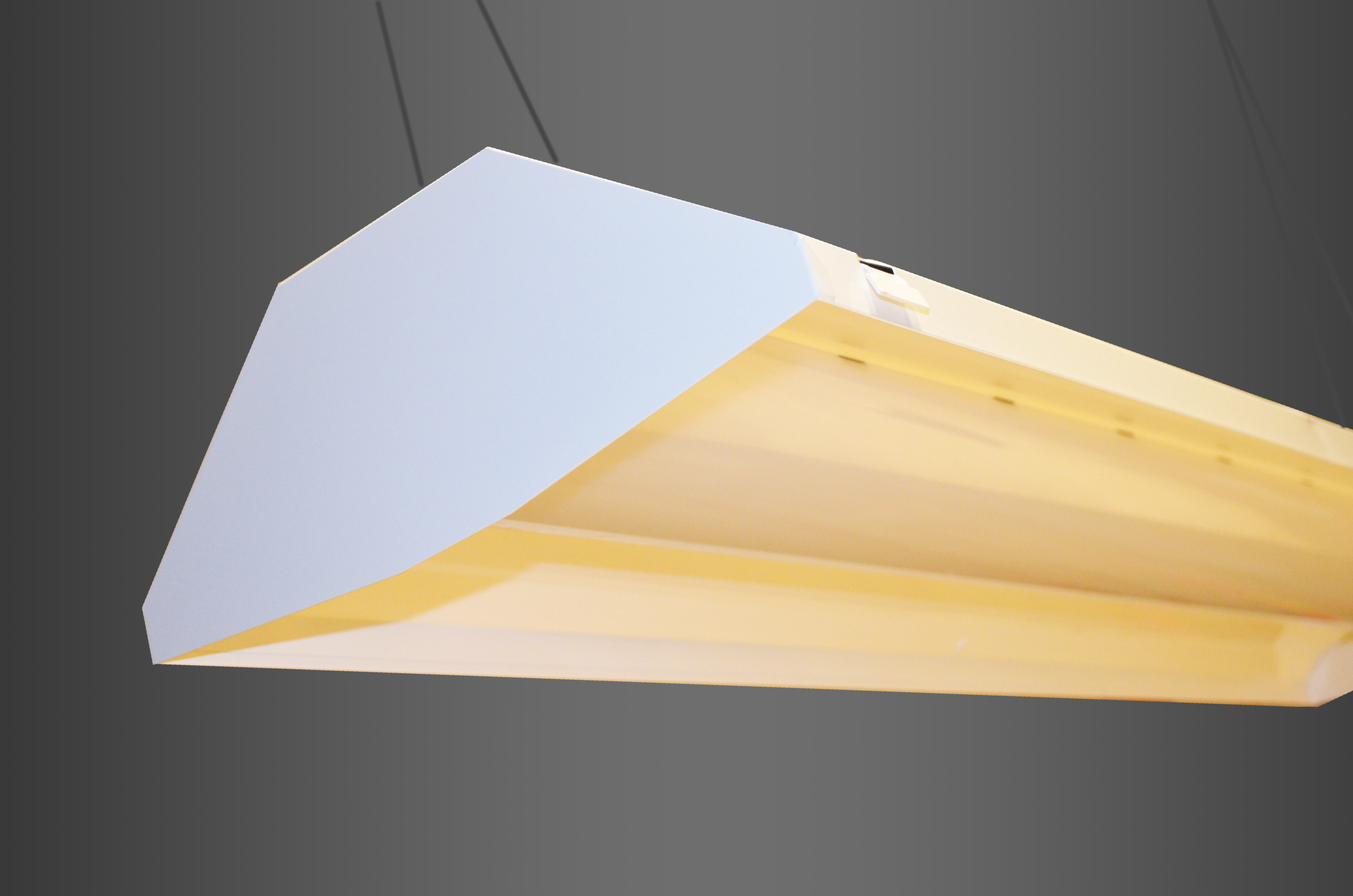

Aluminum frame/heat sink with coated finish on inner reflector
100-277VAC
Integral Driver
Dimming 0-10V
50,000 hours
5-year warranty
DLC and ETL listed
WATTAGE AND LUMENS
Wattages:
- 60W
- 80W
- 100W
- 120W
- 140W
Lumen Output:
- Up to 130Lm/W, 7,800lm
- Up to 130Lm/W, 10,400lm
- Up to 130Lm/W, 13,000lm
- Up to 130Lm/W, 15,600lm
- Up to 130Lm/W, 18,200lm
COLOR TEMP
3500ºK
4000ºK
5000ºK
Beam Spread 120º
MOUNTING

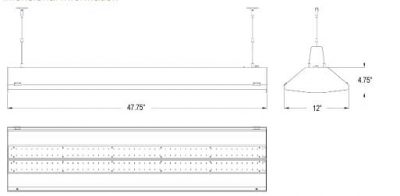

Dimensions:
4′ x 12″
Cable mount
